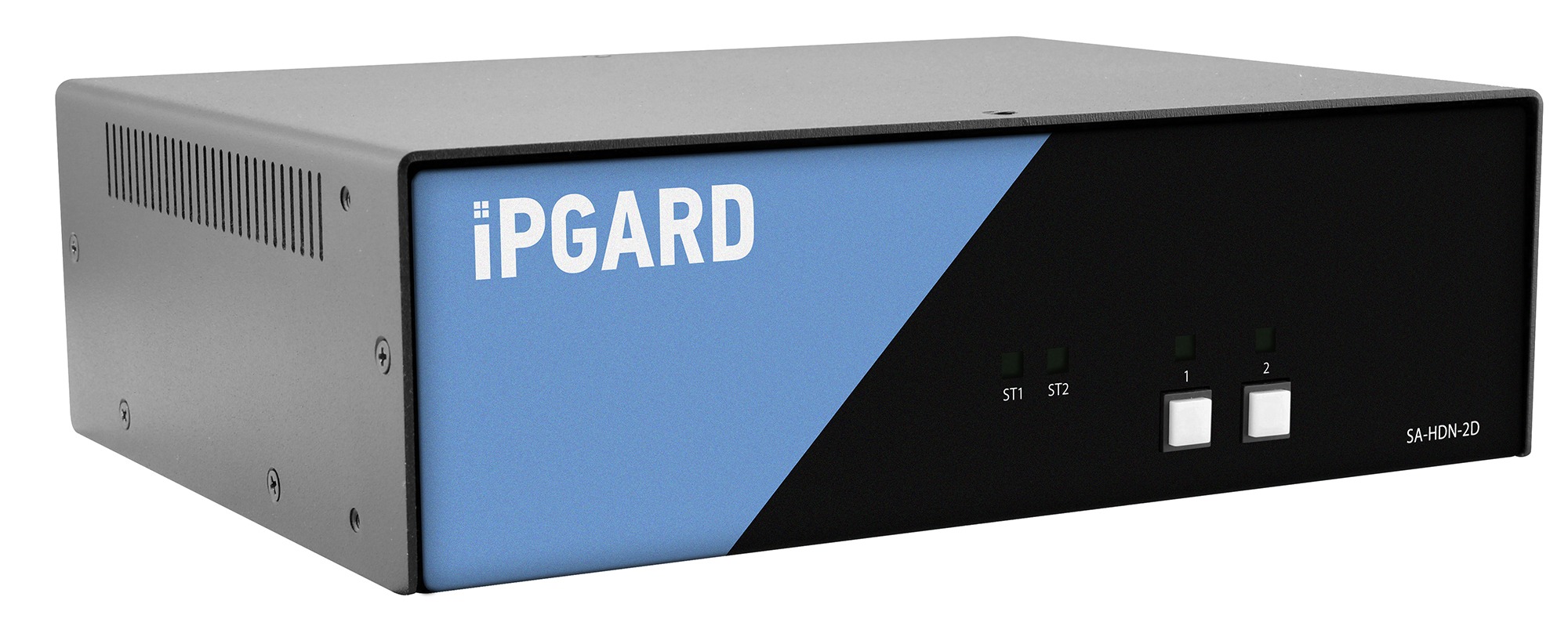

2-Port DH Secure DP/HDMI KVM w/audio
• Supports Windows, Mac and Linux OS
• Dual-head DP/HDMI video interface
• 4K Ultra-HD resolution - supports up to 3840 x 2160 @ 60Hz
• External power supply - Level VI efficiency
• Computer interface isolation while powered or unpowered
• Ensures all user data is completely isolated and no data is ever stored
• Secure channel switching with leak prevention, no hotkeys

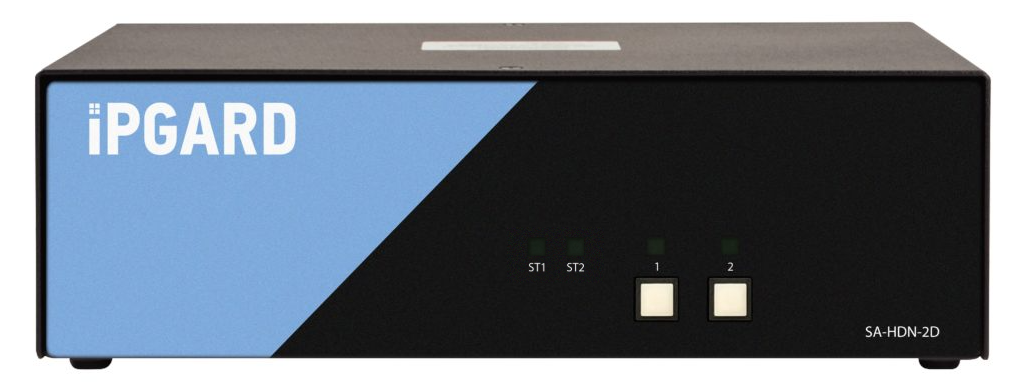

• Front panel tactile buttons for secure channel switching and LED channel indicators
• Peripheral and authentication ports isolation for secure usage
• Tamper evident label and anti-tampering technology
• No wireless devices connected
• Ensures only trusted admin gains access
• Government Operations
• Defense Applications
• Secure Control Rooms
• Corporate Communications
• Server Operations
• Educational Administrations
• Medical Facilities
• Banking Network
• Insurance Data Centers
• Transit Management
• Industrial Operation
• Intelligence Communications

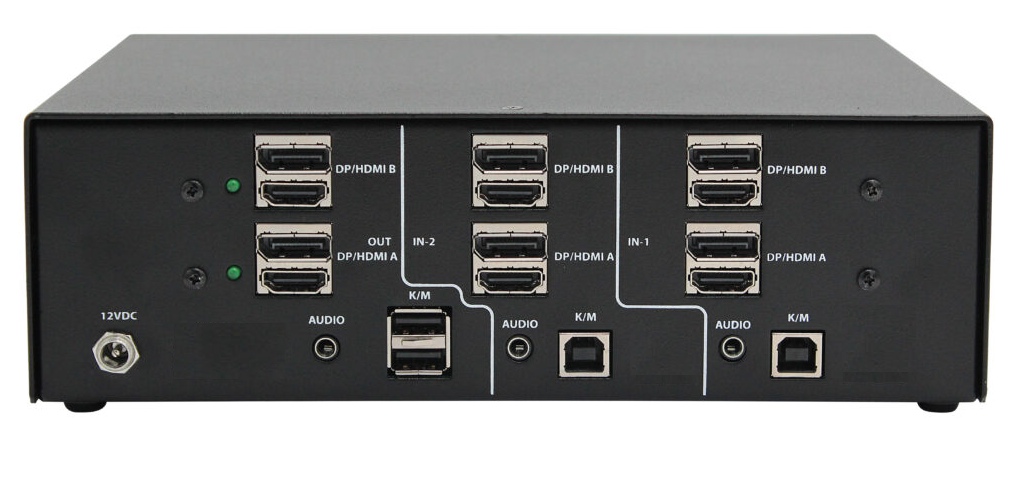

| VIDEO | |
| Format | DisplayPort1.2a, HDMI2.0 |
| Input Interface | (4) DisplayPort, (4) HDMI |
| Output Interface | (2) DisplayPort, (2) HDMI |
| Resolution | Up to 4K (3840x2160 @ 60Hz) |
| DDC | 5 volts p-p (TTL) |
| Input Equalization | Automatic |
| Input Cable Length | Up to 20 ft. |
| Output Cable Length | Up to 20 ft. |
| USB | |
| Input Interface | (2) USB Type B |
| Output Interface | (2) USB 1.1 Type A for KM Devices |
| Emulation | USB 1.1 and USB 2.0 Compatible |
| AUDIO | |
| Audio Input | (2) 3.5mm stereo audio |
| Audio Output | (1) 3.5mm stereo audio |
| CONTROL | |
| Front Panel | Front panel SELECT buttons |
| OTHER | |
| Power | External 100-240 VAC/ 12VDC2A @ 24W |
| Dimensions | 8.8” W x 2.63” H x 6.69” D |
| Weight | 3.85 lbs |
| Approvals | NIAP PP 4.0, UL, CE, ROHS Compliant |
| Operating Temp. | +32 to +104°F (0 to +40°C) |
| Storage Temp. | -4 to 140°F (-20 to +60°C) |
| Humidity | Up to 80% (no condensation) |
| ORDERING INFORMATION | ||
|---|---|---|
| Part No. | UPC | Description |
| SA-HDN-2D. | 686911124341 | 2-Port dual-head DP/HDMI Secure KVM w/ audio. Includes: [SA-HDN-2D, PS12V3A] |
