Displayport to HDMI Converter.

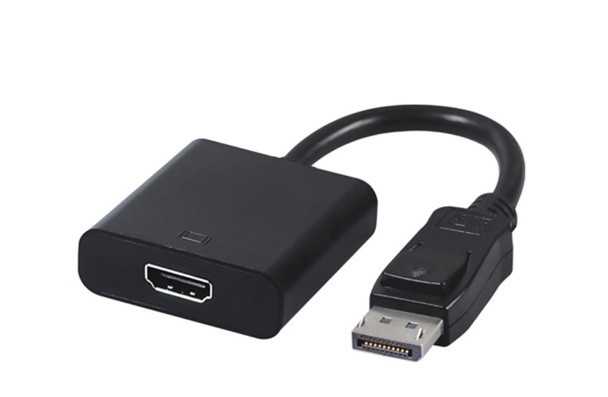

The CV-DP2HD DisplayPort® to HDMI® adapter lets you connect an HDMI-enabled video display to a DisplayPort video source (e.g.DisplayPort video cards, etc.), eliminating the expense of having to upgrade your display for DisplayPort compatibility.
This adapter supports display resolutions of up to 1920×1200 allowing you to take full advantage of HDMI video capability.
DP2HDMI is a passive adapter cable that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
| Technical Specifications | |
| Warranty | 2 Years |
| Active or Passive Adapter | Passive |
| Adapter Style | Adapter |
| Audio | Yes |
| Converter Type | Format Converter |
| Audio Specifications | 5.1 Surround Sound |
| Maximum Digital Resolutions | 1920×1200 / 1080p |
| Connector A | 1 – DisplayPort (20 pin) Latching Male |
| Connector B | 1 – HDMI (19 pin) Female |
| System and Cable Requirements | DP++ port (DisplayPort ++) required on video card or video source (DVI and HDMI pass-through must be supported) |
| Cable Length | 5 in [127 mm] |
| Color | Black |
| Product Length | 9.4 in [240 mm] |
| Product Weight | 2.1 oz [60 g] |
| Shipping (Package) Weight | 0.1 lb [0.1 kg] |
| What’s in the Box | |
| Included in Package | 1 – DisplayPort® to HDMI® Adapter |
| ORDERING INFORMATION | ||
|---|---|---|
| Part No. | UPC | Description |
| CV-DP2HD |
