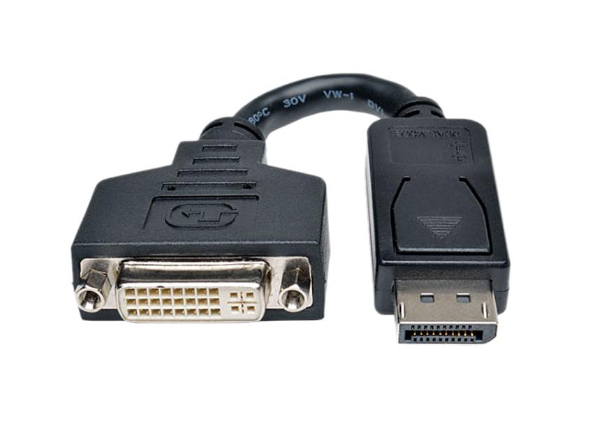

Displayport to DVI-D Active Converter.
The CV-DP2DVI DisplayPort to DVI Active Single Link adapter lets you connect your DisplayPort video source (desktop PC, laptop, etc.) to a DVI-D monitor, projector or display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort-capable monitor.
Unlike passive adapters, this DP to DVI converter offers an active conversion for use with any DisplayPort output – ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity). Supporting resolutions up to 1920×1200, this compact device provides a simple solution for converting DisplayPort output for compatibility with existing DVI monitors, televisions or projectors.
| Technical Specifications | |
| Warranty | 2 Years |
| Active or Passive Adapter | Active |
| Adapter Style | Adapter |
| Audio | No |
| Converter Type | Format Converter |
| Fire Rating | LSZH Rated (Low Smoke Zero Halogen) |
| Industry Standards | HDCP 1.3 DisplayPort 1.1a DDWG 1.0 |
| Output Signal | DVI-D (DVI Digital) |
| Maximum Digital Resolutions | 1920×1200 |
| Wide Screen Supported | Yes |
| Connector A | 1 – DisplayPort (20 pin) Latching Male |
| Connector B | 1 – DVI-D (25 pin) Female |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | 0°C to 70°C (32°F to 158°F) |
| Color | Black |
| Product Height | 0.8 in [20 mm] |
| Product Length | 7.9 in [200 mm] |
| Product Weight | 72.5 oz [70 g] |
| Product Width | 1.7 in [44 mm] |
| Shipping (Package) Weight | 0.2 lb [0.1 kg] |
| What’s in the Box | |
| Included in Package | 1 – DisplayPort to DVI Adapter |
| ORDERING INFORMATION | ||
|---|---|---|
| Part No. | UPC | Description |
| CV-DP2DVI |
