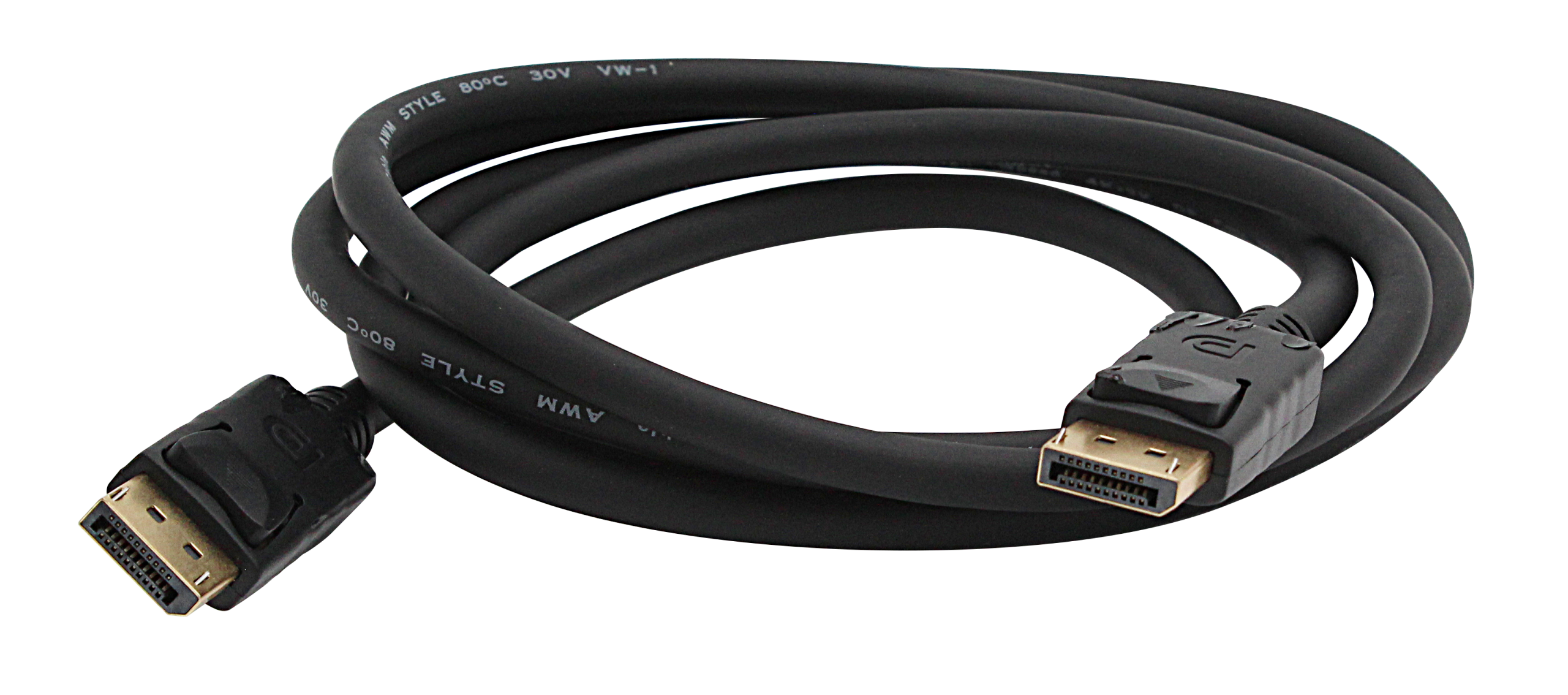

6 Foot DisplayPort Cable – TAA Compliant
The CCDPMM06-TAA DisplayPort cable provides a secure connection between your DisplayPort equipped devices and is capable of providing higher performance than either HDMI or dual-link DVI.
The DP cable supports high resolutions of up to 4K x 2K (3840 x 2160, 60Hz) with a maximum HBR2 bandwidth of 21.6Gbps, as well as optional audio support. The cable also supports Multi-Stream Transport (MST) for daisy chaining multiple monitors.
The 6-foot cable is built to DisplayPort (VESA) 1.2 specifications and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
• 4K Ultra-HD resolution - supports up to 3840 x 2160 @ 60Hz
• HBR2 bandwidth up to 21.6 Gbps
• DisplayPort 1.2 with Multi-Stream Transport (MST)
• HDCP and DPCP content protection support
• Latching connectors for a secure connection
• TAA compliant - manufactured in Taiwan
| CONNECTORS | |
| Connector A | (1) DisplayPort 1.2 (20 pin) Latching Male |
| Connector B | (1) DisplayPort 1.2 (20 pin) Latching Male |
| CABLE | |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Cable Shield Type | Aluminum-Mylar Foil with Braid |
| Connector Plating | Nickel |
| Fire Rating | CMG Rated (General Purpose) |
| Number of Conductors | 19 |
| Wire Gauge | 28 AWG |
| PHYSICAL CHARACTERISTICS | |
| Cable Length | 6 ft [1.8 m] |
| Cable OD | 0.3 in [7.3 mm] |
| Color | Black |
| Connector Style | Latching |
| WARRANTY & PACKAGE | |
| Warranty | Lifetime |
| Included in Package | 1 - 6 ft DisplayPort 1.2 Cable with Latches - M/M |
| ORDERING INFORMATION | ||
|---|---|---|
| Part No. | UPC | Description |
| CCDPMM06-TAA | 686911124518 | 6 Foot DisplayPort Cable - TAA Compliant |
